"OneGeology is an international initiative of the geological surveys of the world and a flagship project of the 'International Year of Planet Earth'. Its aim is to create dynamic geological map data of the world available via the web. The mission is 'Make web-accessible the best available geological map data worldwide at a scale of about 1:1 million." The target scale is 1:1 million but the project will be pragmatic and accept a range of scales and the best available data. Geological map data will be made available as a distributed web service, using the OGC 'web feature mapping' approach. The priority of OneGeology is to make available interoperable, Internet-accessible, scientifically-attributed data." See the OneGeology Portal.

Participating geological surveys contribute maps by means of web map servers (WMS). The OneGeology current status page shows geology maps available now. Countries in green have geology map data online in WMS servers for OneGeology participation. Please review the Guidance for the use of OneGeology images and data

The active WMS servers, and information about the geology maps on the servers, are listed in the OneGeology Catalog of Registered Services.

The IDV shows geology maps contributed to OneGeology, on various map projections, and the IDV can combine the OneGeology maps with other geoscience data displays. Details about some of the geology maps available are shown below.

OneGeology Maps in the IDV

In the IDV, enter a WMS URL server address, such as one listed below, in the Dashboard window, Data Chooser panel, Catalogs section (not URLs), in the Catalogs: entry box, Click on which map you want from that server in the "Merge Layers" box. Click "Add Source." The map will be displayed automatically. You should set your IDV projection to the correct geographic region. If you get an error box with a message about "BBOX" being wrong, try a different projection. If you "Add source and no map is made and you made this map before, go to the Dashboard Fields panel and remove that data source. Adding it twice will no make the map again, even if you have deleted it from the first time.

In the IDV's right side Legend area, click on the little image of the map legend to see the legend in a new larger window. WMS map images first are loaded in the bottom of the IDV wireframe box; move the IDV political map boundaries to the same level as the geology map.

Click on an IDV display below to see a larger size.

UK
BGS
'Great Britain BGS 1:625k Bedrock Age' and other maps

WMS Server URL:
http://ogc.bgs.ac.uk/cgi-bin/BGS_Bedrock_and_Superficial_Geology/wms?&service=WMS&version=1.1.1&request=GetCapabilities&

North America
USGS
'North America USGS 1:5M Geology'

detail:

detail:

WMS Server URL:
http://ngmdb.geos.pdx.edu/cgi-bin/mapserv.cgi?map=/vol/www/ngmdb/htmaps/gmna/GMNA_OWS_display.map&service=WMS&version=1.1.1&request=GetCapabilities&

France
BRGM

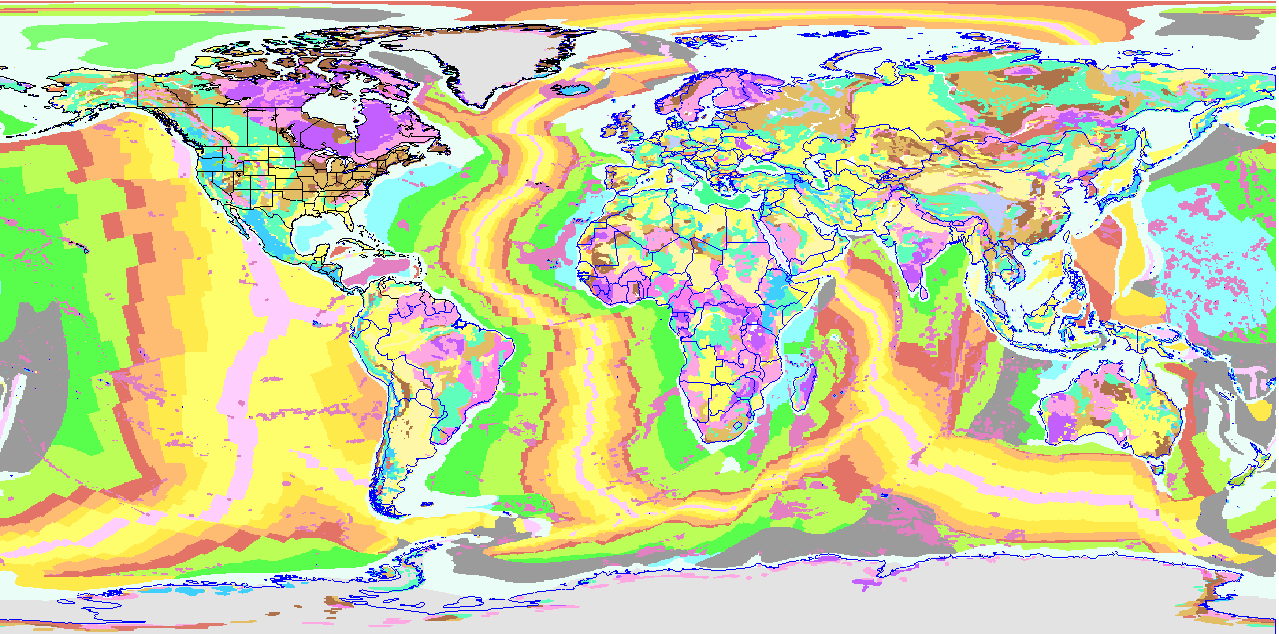

World map at 25 million to 1

'BRGM 1:1M Geologic Structures'
'BRGM 1:1M Geologic Units'

WMS Server URL:
http://mapsone.brgm.fr/1GmapserverFR/wms?map=/applications/mapserver/mapFiles/Lithology_FR.map&service=WMS&version=1.1.1&request=GetCapabilities&

Italy
"ISPRA / SGI 1 - 500K Geologic Formations" and 2 other maps

WMS Server URL:
http://serviziogeologico.apat.it:80/cocoon/Onegeology/wms_en?&service=WMS&version=1.1.1&request=GetCapabilities&

Spain
"IGM geologic units" and others

WMS Server URL:
http://feldespato.igme.es/ArcGIS/services/oneGeology/ESP_1M_IGME_Geology_EN/MapServer/WMSServer?&service=WMS&version=1.1.1&request=GetCapabilities&
(gives an error but works)

Switzerland
SGS
"SGS 1:500 Geological Units" and two other maps
WMS Server URL:
http://prod.swisstopogeodata.ch/SGS_Geol_Tecto/wms?
http://prod.swisstopogeodata.ch/SGS_Geol_Tecto/wms?&service=WMS&version=1.1.1&request=GetCapabilities& ... some problem here

New Zealand
GNS
"NZL GNS 1:1M Lithostratigraphy"

WMS Server URL:
http://spatial.gns.cri.nz:80/geoserver/wms?&SERVICE=WMS&version=1.1.1&request=GetCapabilities&

Germany
The German WMS server will not send data to the IDV since it does not work with clients which appear to be web browsers.

Asia
Coordinating Committee for Geoscience Programmes in East and Southeast Asia (CCOP).
'CCOP 1:2M Combined Bedrock and Superficial Geology and Age'

WMS Server URL:
http://geodata1.geogrid.org/mapserv/CCOP_Combined_Bedrock_and_Superficial_Geology_and_Age/wms?&service=WMS&version=1.1.1&request=GetCapabilities&

Canada
WMS Server URL:
http://ngwd-bdnes.cits.rncan.gc.ca/mapengine/oneGeology/?&service=WMS&version=1.1.1&request=GetCapabilities&

Antarctica
UK BGS
1 to 10 million map of bedrock age

"Data is at 1: 10 million scale. Data derived from SCHEMATIC GEOLOGICAL MAP OF ANTARCTICA 1991, compiled by RJ Tingey."
WMS Server URL:
http://ogc.bgs.ac.uk/cgi-bin/BGS_ATA_Bedrock_Geology/wms?&service=WMS&version=1.1.1&request=GetCapabilities&

Australia
'1:2.5M Geologic Unit - Age'

WMS Server URL:
http://www.ga.gov.au/wms/getmap?dataset=geows&?&service=WMS&version=1.1.1&request=GetCapabilities&

Hungary
MAFI
WMS Server URL:
http://mafi-loczy.mafi.hu:80/wmsconnector/com.esri.wms.Esrimap/MAFI_GEOLOGY?&service=WMS&version=1.1.1&request=GetCapabilities&

Poland
'Poland 1:500k Geological Units'
WMS Server URL:
http://ikar.pgi.gov.pl:80/wmsconnector/com.esri.wms.Esrimap/PGI_Superficial_Geology?&service=WMS&version=1.1.1&request=GetCapabilities&
(appears to be mis located on the map, at least in the IDV, in displays in which other WMS geology maps are correctly located) http://mafi-loczy.mafi.hu:80/wmsconnector/com.esri.wms.Esrimap/MAFI_GEOLOGY?&service=WMS&version=1.1.1&request=GetCapabilities&

Scandanavia
Swedish SGU et al.
Nordic bedrock lithology 1:1M

WMS Server URL:
http://maps2.sgu.se/wmsconnector/com.esri.wms.Esrimap/SGU_Bedrock_geology_Fennoscandian_shield?&service=WMS&version=1.1.1&request=GetCapabilities&
SGU
1:1M Superficial (not "Bedrock") Lithology
WMS Server URL:
http://maps2.sgu.se/wmsconnector/com.esri.wms.Esrimap/SGU_Bedrock_and_Superficial_geology?&service=WMS&version=1.1.1&request=GetCapabilities&

Illinois USA
UIUC
WMS Server URL:
http://barium.isgs.uiuc.edu/ArcGIS/services/ISGS_Bedrock_Geology/MapServer/WMSServer?&service=WMS&version=1.1.1&request=GetCapabilities&
